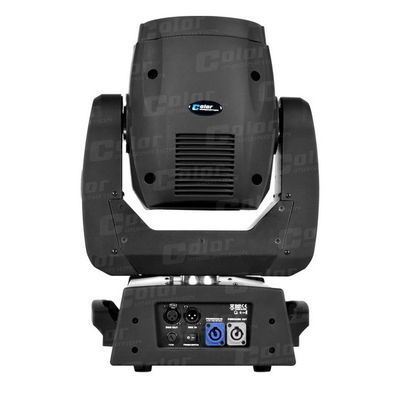

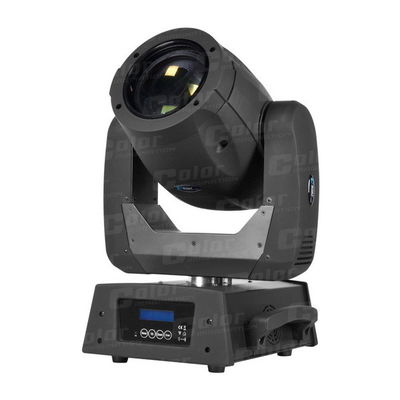

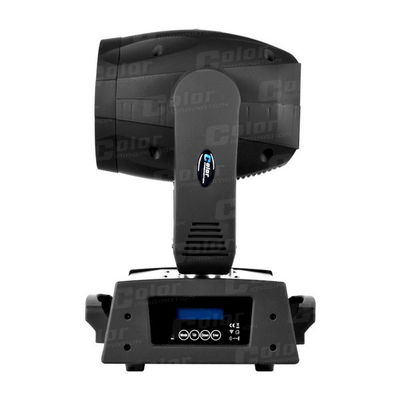

230W Osram LED 7R Sharpy Beam Moving Head DJ Stage Lighting DMX-512 Control

230W Osram LED 7R Sharpy Beam Moving Head DJ Stage Lighting DMX-512 Control

Quick Detail:

• Model Number: SI-063
• Brand Name: color imagination
• Type: Moving Head Lights
• Lamp Power (W): 392W
• Input Voltage (V): AC90-260V 50/60Hz
• Place of Origin: Guangdong China
• Lamp: OSRAM SIRIUS HRI 230W VS60 (10200lumen
• DMX Channels: 14/12/12/16 DMX channels USITT DMX-512 (16CH for Vector Mode)
• Gross Weight: 20.4kg
• Package Size: 620(D)*430(W)*420(H)mm

Description:

3000 hour rated lamp source【SI-063G】

OSRAM SIRIUS HRI 230W VS60 (10200lumen, 7800K, 3000H) included【SI-063G】

51970 Lux @ 20m【SI-063G】

2.5° beam angle

No need for adjustment of reflector or lamp

Anti-reflection lenses

1 color wheel with total 12 colors plus open

Variable direction rainbow effect with speed adjustable

1 rotatable gobo wheels with 13 rotatableand interchangeable gobos plus open

Variable speed gobo scrolling in both directions

12.0mm outside, 8mm image diameter (Gobo Size)

1 rotatable 5-facet prism with speed adjustable and variable direction

Macro-function for rotatable gobo/prism combinations

Variable Frost Filter (Hybrid effect for Wash)

Dual flag mechanical dimming system

Variable speed strobe effect

Preset variable/random strobe and dimming pulse effects

Motor driven focus from near to far

540°/630° PAN and 265° TILT movement

Automatic Pan / Tilt position correction

16 bit smooth and precise resolution for PAN/TILT movement

3-phase motors for fast, quiet and accurate Pan / Tilt positioning

Vector Mode with blackout MIB function

Blue LCD Display

14/12/12/16 DMX channels USITT DMX-512 (16CH for Vector Mode)

Customizable DMX channel assignment (12CH)

DMX, stand-alone, master/slave, sound activated mode

DMX recorder and edit function integrated

Software update

Powercon IN/OUT

3-pin XLR connector IN/OUT

Fan cooling system

Constant temperature readout / management function

DB rating @ 1M = 54,18db

2 x 1/4 turn fastening Omega Clamps

Electronic ballast and power supply

Applications:

Disco and Club

Live performance

Stage show

Specifications :

Input Voltage: AC90-260V 50/60Hz

LED Quantities: 1* OSRAM SIRIUS HRI 230W VS60【SI-063G】

1* OSRAM SIRIUS HRI 190W VS60【SI-056G】

Control Signal: DMX512, master-slave and sound activated or auto operation

Control Channel: 14/12/12/16 DMX Channels USITT DMX-512

Power Consumption: 392W【SI-063G】 342W 【SI-056G】

Dimensions: 315(D)*329(W)*514(H)mm

Packing Dimensions: 620(D)*430(W)*420(H)mm

Net Weight: 17.4kg

Gross Weight: 20.4kg

Competitive advantages:

good price, reliable quality, guarantee of delivery,good after service
