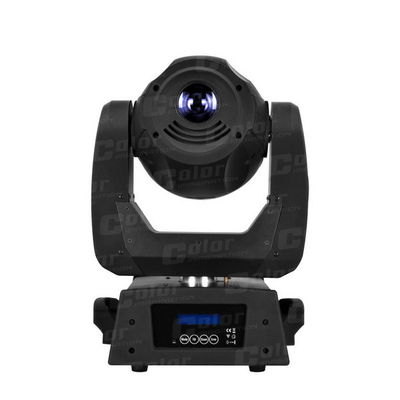

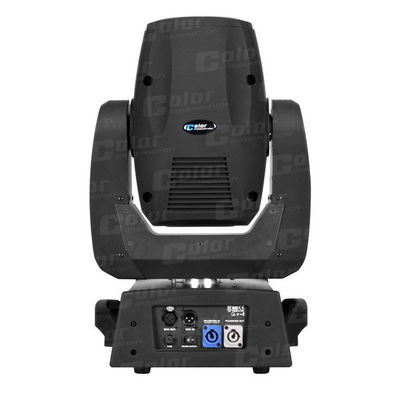

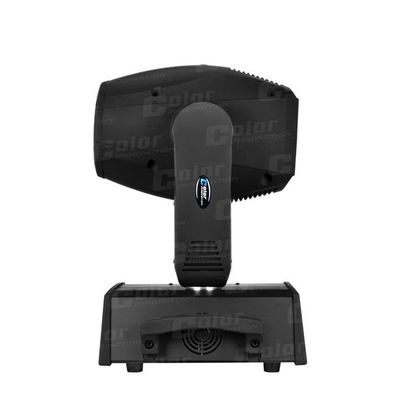

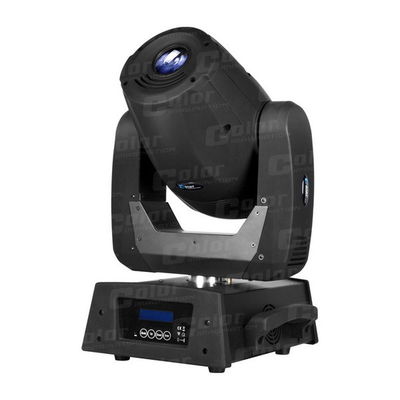

OSRAM SIRIUS 7R Sharpy Spot Moving Head Theatre or Concert Stage Lighting Equipment

OSRAM SIRIUS 7R Sharpy Spot Moving Head Theatre or Concert Stage Lighting Equipment

Quick Detail:

Model Number: SI-062

Brand Name: color imagination

Type: Moving Head Lights

Lamp Power (W): 392

Input Voltage (V): AC90-260V 50/60Hz

Place of Origin: Guangdong China

Lamp: OSRAM SIRIUS HRI 230W VS60

DMX Channels: 16/14/14/18 DMX Channels USITT DMX-512

Gross Weight: 19kg

Package Size: 620(D)*430(W)*420(H)mm

Description:

3000 hour rated lamp source【SI-062】OSRAM SIRIUS HRI 230W VS60 (10200lumen, 7800K, 3000H) included【SI-062】

4890 Lux @ 5m【SI-062】

16° beam angle

No need for adjustment of reflector or lamp

Anti-reflection lenses

1 Color wheel with total 8 colors plus open

Variable direction rainbow effect with speed adjustable

1 Rotatable gobo wheel with 12 rotatable and interchangeable gobos plus open

1 Static gobo wheel with 14 static gobos plus open

Variable speed gobo scrolling in both directions|

Gobo Overlay (gobo morphing)

12.0mm outside diameter, 8mm image diameter (Gobo Size)

1 rotatable 3-facet prism with speed adjustable and variable direction

Macro-function for rotatable gobo/rotatable prism combinations

Electronic linear IRIS with variable speed and macros(5-100%)

Variable Frost Filter (Hybrid effect for Wash)

Dual flag mechanical dimming system

Variable speed strobe effect

Preset variable/random strobe and dimming pulse effects

Motor driven focus from near to far

540°/630° PAN and 265° TILT movement

Automatic Pan / Tilt position correction

16 bit smooth and precise resolution for PAN/TILT movement

3-phase motors for very fast,quiet and accurate Pan / Tilt positioning

Vector Mode with blackout MIB function

Blue LCD Display

16/14/14/18 DMX channels USITT DMX-512 (18CH for Vector Mode)

Customizable DMX channel assignment (14CH)

DMX, stand-alone, master/slave or sound activated mode

DMX recorder and edit function integrated

Powercon IN/OUT

3-pin XLR connector IN/OUT

Fan cooling system

Constant temperature readout and management function

DB rating @ 1M = 54,18db

2 x 1/4 turn fastening Omega Clamps

Electronic ballast and power supply

Applications:

Disco and Club

Live performance

Stage show

Specifications :

Input Voltage: AC90-260V 50/60Hz

LED Quantities: 1* OSRAM SIRIUS HRI 230W VS60【SI-062】

1* OSRAM SIRIUS HRI 190W VS60【SI-054】

Control Signal: DMX512, master-slave and sound activated or auto operation

Control Channel: 16/14/14/18 DMX Channels USITT DMX-512

Power Consumption: 392W【SI-062】 352W【SI-054】

Dimensions: 315(D)*329(W)*53 0(H)mm

Packing Dimensions: 620(D)*430(W)*420(H)mm

Net Weight: 16kg

Gross Weight: 19kg
