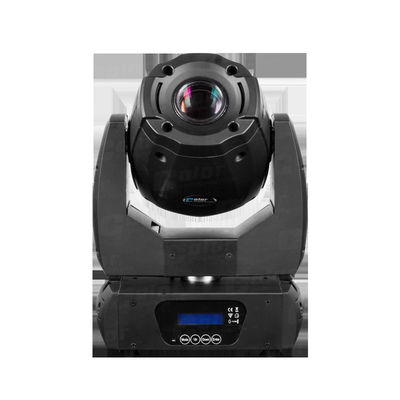

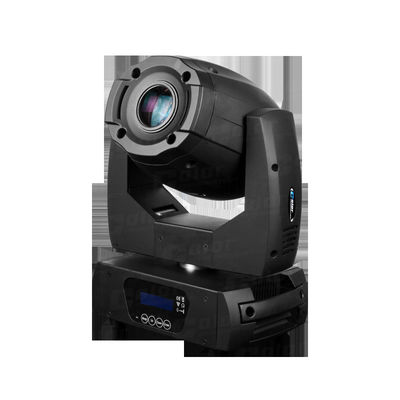

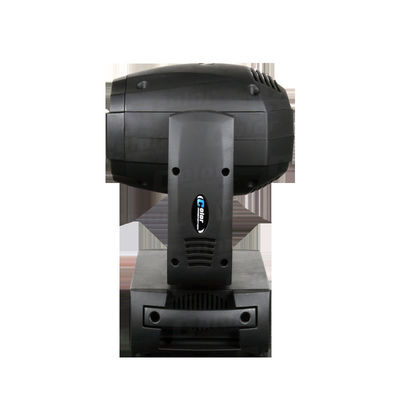

Mini Moving Heads Spot With Blue LCD Display / White LED Lamp 7500K 150 Watt

150W Mini Moving Head Spot With Blue LCD Display And White LED Lamp





Quick Detail



The MINISPOT 150 features a 7500K 150W LED with high intensity and efficiency.It produces very high light output, through a specific 13.2° optic system. The PAN/TILT integrates in fast and quiet movement.

Itoffers a full complement of professional characteristics, including a rotating gobo wheel, static gobo wheel, color wheel, a 3-facet prism,linear electronic focus, 0-100% linear LED dimmer, variable speed

shutter/strobe.













Features



 > A 150W white LED lamp, 7500K

 > 50000 hours life span and low power consumption

 > 8/16 bit smooth and precise resolution for PAN/TILT movement

 > 360°/540°/630° PAN and 90°/180°/270° TILT movement

 > PAN/TILT inversion available

 > Scan position memory, auto reposition after unexpected movement

 > Specific high precision glass optic system with 13.2° projection angle

 > Improved optics and flat beam field

 > 1 rotatable gobo wheel with 6 rotatable and interchangeable gobos plus open with speed adjustable,

    stream effect, dithering effect and rotatable clockwise or anticlockwise

 > Gobo size 23.9mm (external)/15mm (inner)

 > Static gobo wheel with 11 gobos plus open

 > Color wheel with 7 colors plus open

 > Variable direction rainbow effect with speed adjustable

 > 2.5m -15m electric focus

 > 25T/sec high speed LED shutter/strobe effect with variable speed

 > 3-facet prism with variable speed and direction

 > 0-100% smooth linear LED dimmer

 > Preset variable/random strobe and dimming pulse effect

 > 12/14 DMX channels USITT DMX-512

 > DMX512, master-slave, and sound activated controllable or auto operation (7 built-in programs)

 > DMX recorder and edit function integrated

 > Blue LCD display

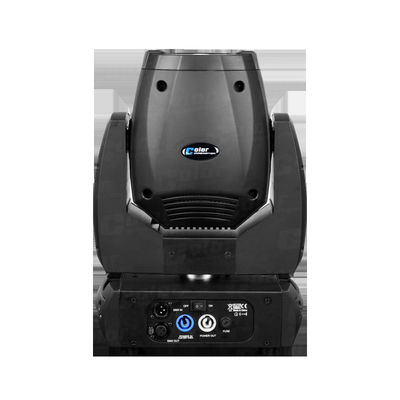

 > Powercon connector IN/OUT

 > 3-pin XLR connectors IN/OUT

 > Low noise fan cooling system

 > Constant temperature readout and management function

 > -35°C~45°C max ambient temperature

 > IP20 protection rating

 > 55dB at 3’dB rating

 > 2*1/4 turn fastening Omega clamp

 > 1*Safety attachment point











Specification



 >  Input Voltage:AC90-260V 50/60Hz

 >  LED Quantities:1*150W white LED

 >  Control Signal:DMX512,master-slave and sound activated or auto operation

 >  Control Channel: 12/14 DMX channels USITT DMX-512

 >  Power Consumption:215W

 >  Dimensions:183(D)*298(W)*410(H)mm

 >  Packing Dimensions:400(D)*510(W)*280(H)mm

 >  Net Weight: 9.5kg

 >  Gross Weight: 11kg









Applications



Disco and Club, Band performance, Stage show, Road show, Live concerts
