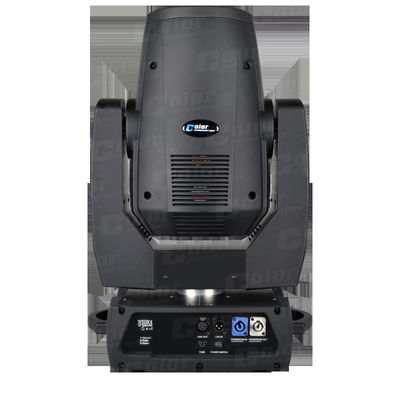

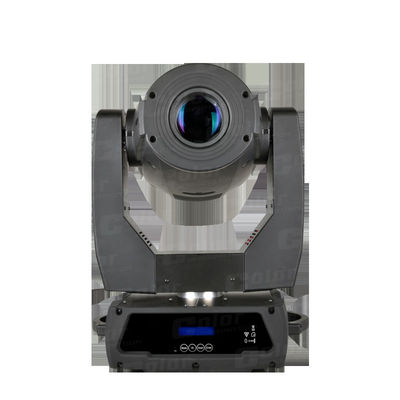

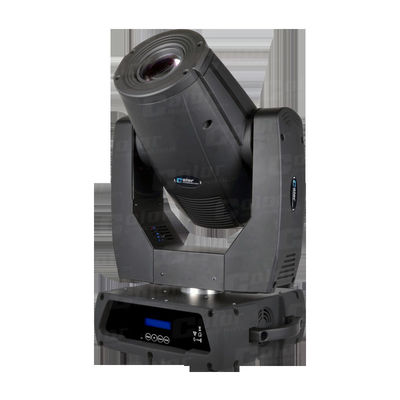

300W RGBW Stage LED Moving Head Spot DMX For Disco / DJ / Party Lighting

300W RGBW Stage Light LED Spot Moving Head Lights DMX Disco DJ Party Lighting





Quick Detail



The LEDSPOT 300 leads the trend of future entertainment lighting with ultra high brightness and low power consumption realized by a 300W single white LED lamp. It features a 12° to 36° linear motorized zoom that brings much wider application capability for pro lighting designers. It's a pro LED SPOT with outstanding light intensity, in a compact case,in a compact case. The PAN/TILT integrates in fast and quiet movement.It offers a full complement of professional characteristics, including a rotatable gobo wheel (7 gobos plus open), a static gobo wheel (9 gobos plus open), a color wheel (7 colors plus open), motorized linear IRIS, 3-facet rotating prism, variable frost filter, motorized linear focus,0-100% linear LED dimmer, variable speed shutter/strobe.











Features



> A 300W white LED lamp, 7500K

> 50000 hours life span and low power consumption

> 8/16 bit smooth and precise resolution for PAN/TILT movement

> 540°/630° PAN and 270° TILT movement

> Scan position memory, auto reposition after unexpected movement

> Linear motorized zoom with 12° to36° beam angle

> Improved optics and flat beam field

> 1 rotatable gobo wheel with 7 rotatable and interchangeable glass gobos  plus open with speed

    adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise

> Gobo size 26.9mm (external dimensisons)/21mm (inner dimensisons)

> 1 Static gobo wheel with 9 gobos plus open

> Gobo overlay(gobo morphing)

> 1 Color wheel with 7 colors plus open

> Variable direction rainbow effect with speed adjustable

> 2.5m - 15m electric focus

> Motorized linear IRIS

> 3-facet prism with variable speed and direction

> 0-100% smooth linear LED dimmer

> 25T/sec high speed LED shutter/strobe effect with variable speed

> Preset variable/random strobe and dimming pulse effect

> Customizable DMX channel assignment (17CH)

> 17/15/17 DMX channels USITT DMX-512

> DMX512, master-slave, and sound activated controllable or auto operation (8 built-in programs)

> DMX recorder and edit function integrated

> Blue background LCD display

> Powercon connector IN/OUT

> 3-pin XLR connectors IN/OUT

> Fan cooling system

> Constant temperature readout and management function

> -35°C~45°C max ambient temperature

> IP20 protection rating

> 55dB at 3’dB rating

> 2*1/4 turn fastening Omega clamp

> 1*Safety attachment point











Specification



> Input Voltage:AC90-260V 50/60Hz

> LED Quantities:1*300W white LED lamp

> Control Signal:DMX512,master-slave and sound activated or auto operation

> Control Channel: 17/15/17 DMX channels USITT DMX-512

> Power Consumption:390W

> Dimensions:318(D)*411(W)*628(H)mm

> Packing Dimensions:485(D)*685(W)*460(H)mm

> Net Weight: 21kg

> Gross Weight: 23.5kg







Applications



Disco and Club, Band performance, Stage show, Road show, Live concerts
