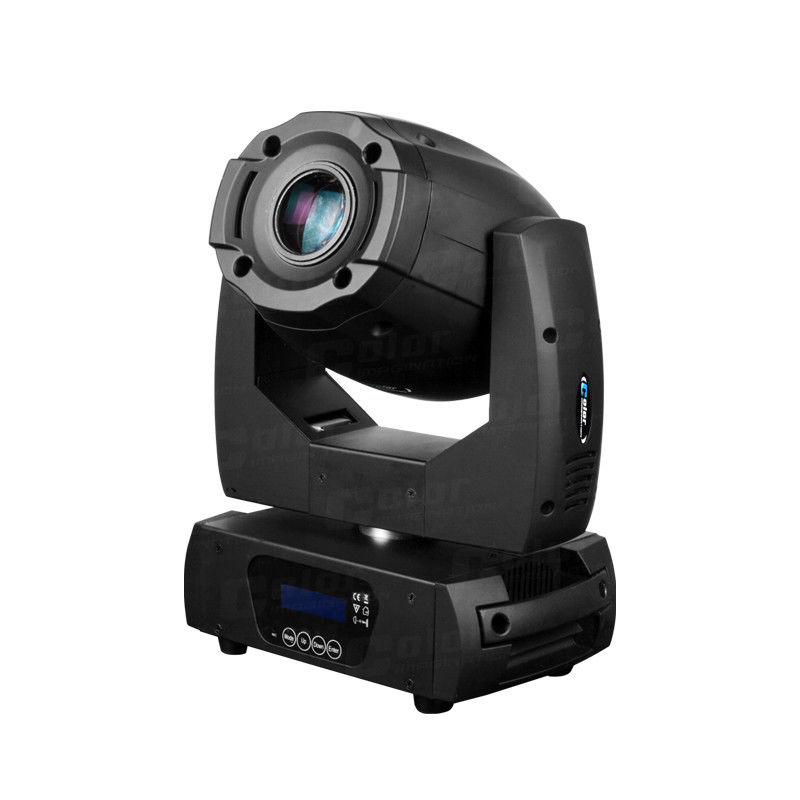

High intensity and efficiency LED Moving Head Spot / 150W LED mini spot

Quick Detail:

The MINISPOT 150 features a 7500K 150W LED with high intensity and efficiency. It produces very high light output, through a specific 13.2° optic system. The PAN/TILT integrates in fast and quiet movement. It offers a full complement of professional characteristics, including a rotating gobo wheel,static gobo wheel, color wheel, a 3-facet prism, linear electronic focus, 0-100% linear LED dimmer, variable speed shutter/strobe.

Specifications :

> A 150W white LED lamp, 7500K
> 50000 hours life span and low power consumption
> 8/16 bit smooth and precise resolution for PAN/TILT movement
> 360°/540°/630° PAN and 90°/180°/270° TILT movement
> PAN/TILT inversion available
> Scan position memory, auto reposition after unexpected movement
> Specific high precision glass optic system with 13.2° projection angle
> Improved optics and flat beam field
> 1 Rotatable gobo wheel with 6 rotatable and interchangeable gobos
> plus open with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise
> Gobo size 23.9mm (external)/15mm (inner)
> Static gobo wheel with 11 gobos plus open
> Color wheel with 7 colors plus open
> Variable direction rainbow effect with speed adjustable
> 2.5m-15m electric focus
> 3-Facet prism with variable speed and direction
> 0-100% Smooth linear LED dimmer
> Preset variable/random strobe and dimming pulse effect
> 25T/sec high speed LED shutter/strobe effect with variable speed
> 12/14 DMX channels USITT DMX-512
> DMX512, master-slave, and sound activated controllable or auto operation (7 built-in programs)
> DMX recorder and edit function integrated
> Blue LCD display
> POWRECON connector IN/OUT
> 3-Pin XLR connectors IN/OUT
> Low noise fan cooling system
> Constant temperature readout and management function
> -35°C ~ 45°C max ambient temperature
> IP20 protection rating
> 55dB at 3’dB rating
> 2*1/4 turn fastening Omega clamp
> 1* Safety attachment point

Specifications:

> Input Voltage:AC90-260V 50/60Hz
> LED Quantities:1*150W white LED
> Control Signal:DMX512, master-slave and sound activated or auto operation
> Control Channel: 12/14 DMX channels USITT DMX-512
> Power Consumption: 215W
> Dimensions:183(D)*298(W)*410(H)mm
> Packing Dimensions:400(D)*510(W)*280(H)mm
> Net Weight: 9.5kg
> Gross Weight: 11kg
