High Brightness Moving Head Beam Stage Light 50 / 60Hz For Large Scale Road Shows

High Output Lamp Moving Head Beam Stage Lighting For Large Scale Live Concerts

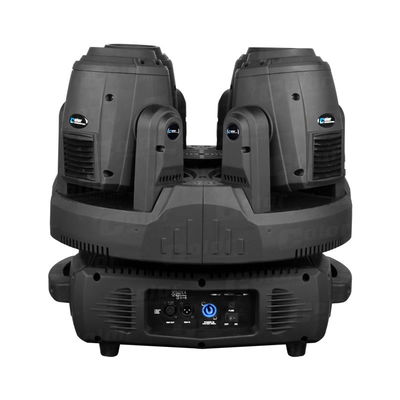

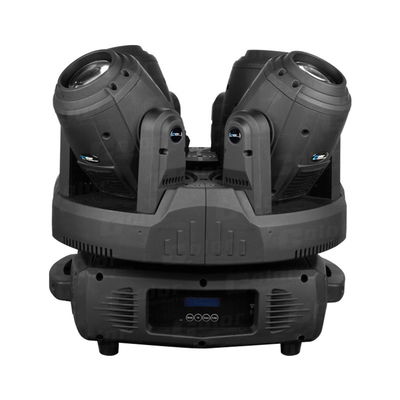

The CRAZY 4, where legend begins, integrates 4 individual compact BEAM moving heads (sam functions) in an UFO shape revolver with fast and precise 360° continuous PAN movement. Each head comes with a PHILIPS 189W 5R lamp, independent TILT adjustment and high definition 3°optic lens. The fixtures offers a full complement of professional characteristics. It’s applicable for large scale live concerts, TV productions, clubs, etc.

Quick Detail:

• 4*PHILIPS 189W 5R lamp
• 2000 hours life span and low power consumption
• 8/16 bit smooth and precise resolution for PAN/TILT movement
• 360° continuous PAN and 180° TILT movement
• PAN/TILT inversion available
• Scan position memory, auto re-position after unexpected movement
• Specific high precision glass optic system with 3° projection angle
• Improved optics and flat beam field
• A static gobo wheel with 14 gobos plus open and gobo shake
• A color wheel with 11 colors plus open
• Variable direction rainbow effect with speed adjustable
• 2.5m to 30m linear electric focus
• 8-Facet prism with variable speed and direction
• 0-100% Smooth linear dimmer
• 1~20T/sec high speed shutter/strobe effect with variable speed
• Preset variable/random strobe and dimming pulse effect
• 11/46/46/48 DMX channels USITT DMX-512 (vector mode included,
• color time and gobo time controllable from fast to slow)
• DMX512, master-slave, and sound activated controllable or auto
• operation
• 8 Built-in auto running programs
• 6 Built-in macro functions
• DMX recorder and edit function integrated
• 2.4" TFT LCD display (320*240pix)
• POWRECON connector IN
• 3-Pin XLR connectors IN/OUT
• Low noise fan cooling system
• Constant temperature readout and management function
• -35-45°C max ambient temperature
• IP20 protection rating
• 55dB at 3’dB rating
• 1 Set specially designed hanging system
• 2*Safety attachment points
•
•

Description:

1. Input Voltage:AC90-260V 50/60Hz
2. LED Quantities:4*PHILIPS 189W 5R lamp
3. Control Signal:DMX512, master-slave and sound activated or auto operation
4. Control Channel: 11/46/46/48 DMX channels USITT DMX-512
5. Power Consumption: 1200W
6. Dimensions:555(D)*564(W)*545(H)mm
7. Net Weight: 54kg
8. Flight Case Dimensions:620(D)*590(W)*860(H)mm
9. Flight Case Weight: 28KG
10. Gross Weight: 82kg (with case)

Applications:

Disco and Club

Live performance

Stage show

Competitive advantages:

good price, reliable quality, guarantee of delivery,good after service
