Dot Matrix LED Display Controllable Individually Wash Effect Stage Lighting

China Dot Matrix LED Display Controllable Individually Wash Effect Stage Lighting supplier

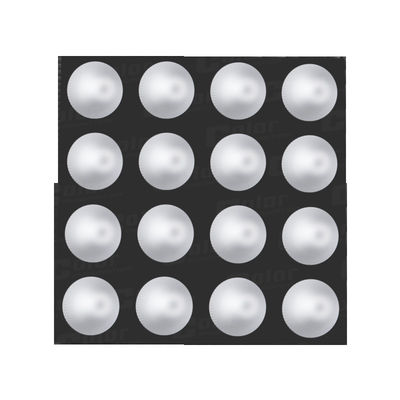

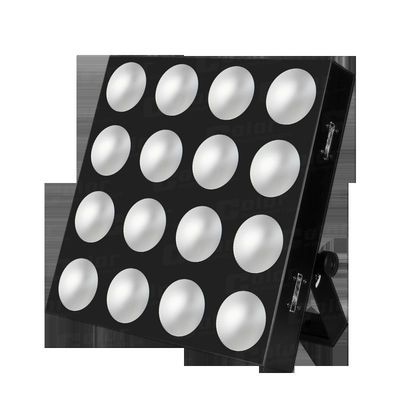

Large Image :  Dot Matrix LED Display Controllable Individually Wash Effect Stage Lighting

Product Details:

Place of Origin: China
Brand Name: Color imagination
Certification: RoHs, CE, CCC
Model Number: SI-091S

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Paper box
Delivery Time: 5-10 days
Payment Terms: E.X. work
Supply Ability: 1, 000, 000PCS/week
Detailed Product Description



Dot Matrix LED Display Controllable Individually Wash Effect Stage Lighting





The MATRIX is a kind of matrix panel punching beam effect. Each option features 3 DMX channel modes. In professional mode, each LED(color) are controllable individually that is capable to create different patterns. It’savailable for stand alone mode with internal running programs, DMX control or controlled by intermediate computer control system CT-01 (only for 3-in-1 version). It
is designed with DMX ID setting capability. They are controllable under only one ID address. It’s ideal for live concerts, DJ shows, clubs, pubs, etc.



Quick Detail:



  1. Input Voltage: AC90-260V 50/60Hz
  2. 16*10W 3-in-1 LEDs (MATRIX 2510ST)
  3. 16*10W warm white LEDs (MATRIX 2510SW)
  4. 16*10W pure white LEDs (MATRIX 2510SP)
  5. Control Signal: DMX512,master-slave,sound activated,auto
  6. operation or computer control
  7. Control Channel:
  8. 8/48/53 DMX channels USITT DMX-512 (MATRIX 2510ST)
  9. 5/15/20 DMX channels USITT DMX-512 (MATRIX 2510SW/SP)
  10. Power Consumption: 160W
  11. Product Dimensions: 125(D)*575(W)*575(H)mm
  12. Packing Dimensions: 300(D)*655(W)*655(H)mm
  13. Net Weight: 12.5KG
  14. Gross Weight: 14.5KG





Description:



  • 16*10W 3-in-1 LEDs (MATRIX 2510ST)
  • 16*10W warm white LEDs (MATRIX 2510SW)
  • 16*10W pure white LEDs (MATRIX 2510SP)
  • 50,000H life span with high brightness and lower power
  • consumption
  • Optimized high efficiency 8° optic system with even color
  • mixing
  • Each LED and each color controllable individually
  • Different patterns creating capability
  • 0-100% Linear LED dimmer
  • Different color changing effect
  • 1-20T/S high speed LED shutter/strobe effect, from slow to fast
  • DMX512, master-slave, sound activated or auto
  • operation(different internal programs)
  • Intermediate computer control system CT-01 controllable
  • (only for 3-in-1 version)
  • 8/48/53 DMX channels USITT DMX-512 (MATRIX 2510ST)
  • 5/15/20 DMX channels USITT DMX-512 (MATRIX 2510SW/SP)
  • LED display
  • POWERCON connectors IN/OUT
  • 3-Pin XLR connectors IN/OUT
  • High efficiency low noise heat sink system
  • Safe and stable hanging system
  • -45°-+45° ambient application temperature
  • IP20 protection rating





Applications:



Disco and Club

Live performance

Stage show





Competitive advantages:



good price, reliable quality, guarantee of delivery,good after service
