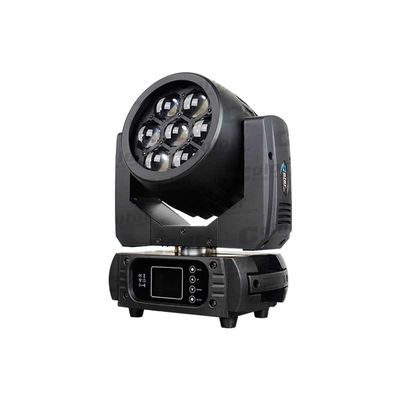

MINI Full Color LED Wash Zoom 7 PCS 15W Pixel Control For Theater / Studio

MINIZOOM Wash 7 PCS 15W Full Color LED With Pixel Control For Theater/Studio

Minizoom 715FP  new type of high temperature strength of engineering plastics and cast aluminum casing with a very compact and lightweight housing. The fixture is designed and manufactured strictly following CE standards, complying with international standard DMX512 protocol. It's widley used in large-scale live performances, theater, studio, nightclubs and discos, Wedding, band show.

Description:

• 7*15W RGBW in 1 LEDs
• 50,000 hours lifespan With a  low power consumption
• MINIZOOM 715FP with pixel control with each LEDs controllable individually
• Specific optic lens of highly efficient elements integrated with glass tube
• Fast, smooth and quiet motorized zoom with 8° -62°range
• Clean edge and pure color mixing coverage
• 8/16 Bit smooth, fast and precise PAN/TILT movement
• 630°/540°/360°PAN optional and 270°/180°/90°TILT optional
• PAN/TILT reversible advantage
• PAN/TILT calibration available
• Scan position memory, auto reposition after unexpected movement
• 0-100% Smooth linear LED dimmer
• 7 built-in default programs for easy operation
• 6 Kinds of pre-programmed macro effects with variable speed
• Variable speed strobe effect with 1-25 flashes/s
• Variable pusle and random effects
• 13 or 43 two DMX channel modes (USITT DMX-512)
• DMX512, master-slave and sound activated controllable or auto operation
• Sound control with sensitivity adjustment
• 2.4" TFT LCD display (320*240pix) with 4 control buttons
• LCD display switch-off automatically after 1 minute
• 180°Reversible for LCD display
• DMX signal monitoring indicator available
• Quiet and efficient FAN cooling system
• Efficient low noise self adjusting fan cooling system
• Constant temperature readout and management function
• Over heat protection management
• Powercon IN/OUT with power switch and fuse
• 3-Pin DMX connectors IN/OUT
• DB rating@1M=54.18dB
• IP20  Waterproof protection rating
• -35°C to 45 max ambient temperature
• Two *1/4 turn fastening Omega Clamps (Adaptable vertically and horizontally)
• One Safety attachment point
• With CE (EMC/LVD) and RoHS certifiication

Specifications :

Input Voltage: AC90-260V 50/60Hz
LED Quantities: 7*15W COB 4-in-1 LED(RGBW)
Control Signal: DMX512,master-slave and sound activated or auto operation
Control Channel: 43/13 DMX Channels USITT DMX-512
Power Consumption: 110W
Dimensions: 281(D)*170(W)*333(H)mm
Packing Dimensions: 370(D)*275(W)*473(H)mm
Net Weight: 6.2kg
Gross Weight: 7.8kg
