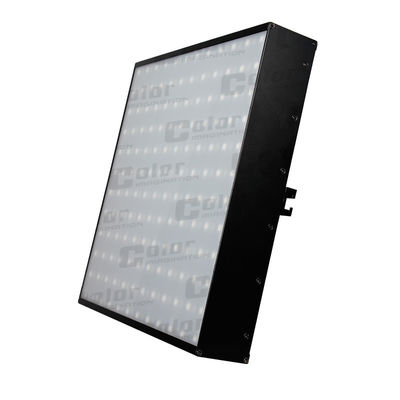

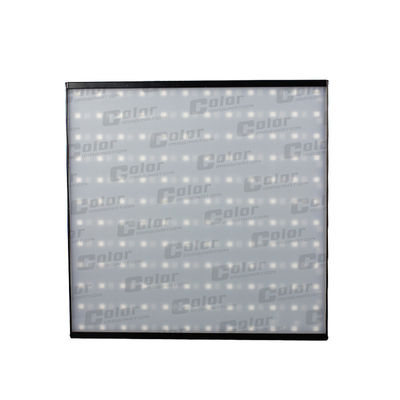

CCC Professional Led Stage Lighting 144PCS 12 * 12 SMD5050 RGB PIXEL PANEL

144PCS (12*12) SMD5050 RGB PIXELPANEL

It’s a cool static LED video panel with pixel mapping capability by 144PCS (14*14) SMD5050 RGB/FC high-efficiency LEDs controllable individually.The PIXELPANEL 144 features 25 millimeters pixel pitch with
120°projection angle. It offers several control options for different users,stand alone, Art-Net, Arkaos KlingNet (LED MASTER), DMX.

The PIXELPANEL 144 provides 3 DMX channels models for simple control or professional programming, 8CH/32CH/432CH. The front lens filter is available for replaceable frosted

version or clear version.The PIXELPANEL is a friendly designed light weight fixture with quite easyto-
use mechanical structure to allow flexible mounting through its sliding hardware on the back panel for truss hanging. The users could connect dozens of fixtures through this sliding hardware both vertically or
horizontally.

The PIXELPANEL 144 is perfectly fit for back stage vivid effect, live concerts,TV studios,DJ shows,clubs,etc.

Features:

> 144PCS (12*12) SMD5050 RGB/FC high-efficiency LEDs
> Each LED controllable individually (Pixel mapping)
> 25 Millimeters pixel pitch
> 50000 hours life span and low power consumption
> 120°Projection angle and excellent color rendering
> Replaceable frosted or clear front lens filter
> 0-100% Smooth linear LED dimmer
> Controllable by Art-Net or Arkaos KlingNet
> Works great with ArKaos LED Master for easy plug-and-play
> 8CH/32CH/432CH DMX channels USITT DMX-512
> DMX512, master-slave, and sound activated controllable or auto operation
> DMX recorder and edit function integrated
> Sound control with sensitivity adjustment
> Built-in programs, special effects, macro effect
> LCD display with 4 control buttons
> LCD display switch-off automatically after 60 seconds
> DMX signal monitoring indicator available
> Lower noise and efficient FAN cooling system
> Over heat protection management
> Die-case stylish aluminum housing
> Flexible sliding mounting hardware for easy connection setup
> Powercon IN/ OUT
> Ethernet connector IN/OUT
> 3-Pin DMX connectors IN/OUT
> IP20 protection rating
> -35℃ to 45℃ ambient temperature
> 1*Safety attachment point

Specifications:

> Input Voltage:AC90-260V 50/60Hz
> LED Quantities: 160PCS (4*40) SMD5050 RGB/FC LEDs
> Control Signal: DMX512, master-slave and sound activated or auto operation
> Control Channel: 8CH/32CH/432CH DMX channels USITT DMX-512
> Power Consumption: 43W
> Dimensions:55(D)*300(W)*300(H)mm
> Packing Dimensions:120(D)*350(W)*350(H)mm
> Net Weight: 2.3kg
> Gross Weight: 3.5kg
