DMX Moving Head Mini Beam 10R Osram Lamp Stage Lighting For Performance

China DMX  Moving Head Mini Beam 10R Osram Lamp  Stage Lighting For Performance supplier
DMX  Moving Head Mini Beam 10R Osram Lamp  Stage Lighting For Performance supplier DMX  Moving Head Mini Beam 10R Osram Lamp  Stage Lighting For Performance supplier DMX  Moving Head Mini Beam 10R Osram Lamp  Stage Lighting For Performance supplier DMX  Moving Head Mini Beam 10R Osram Lamp  Stage Lighting For Performance supplier

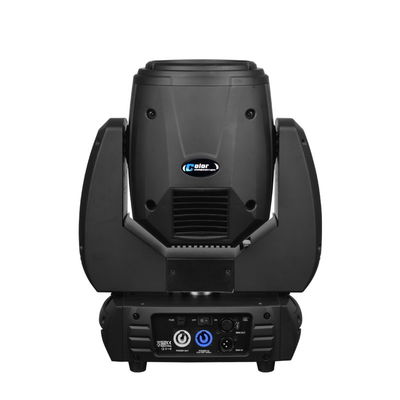

Large Image :  DMX Moving Head Mini Beam 10R Osram Lamp Stage Lighting For Performance

Product Details:

Place of Origin: China
Brand Name: Color imagination
Certification: RoHs, CE, CCC
Model Number: SI-130

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Paper box or flight case
Delivery Time: 5-10 days
Payment Terms: E.X. work
Supply Ability: 1, 000, 000PCS/week
Contact Now
Detailed Product Description
Lamp: Osram Wattage: 280W
Prism: 16-facet Prism With 11 Colors Plus Open
High Light:

5r beam moving head

,

sharpy moving head

DMX Moving Head Mini Beam 10R Osram Lamp Stage Lighting For Performance



The MINIBEAM 280 is a fully new design by Color Imagination, aiming to bring a very compact
and lightweight housing moving head beam, as always, with very high light output and even
coverage field, to the market. The fixture is integrated with a full complement of professional
characteristics including a static gobo wheel, color wheel, 8-facet rotating prism, frost filter,
motorized linear focus, variable speed shutter/strobe, 0-100% linear dimmer, color time and gobo
time controllable.
The lamp equips with the reflector built-in, providing perfect lamp alignment. MINIBEAM 280
features ultra sharp beam effect with low consumption realized by the powerful OSRAM 280W
lamp (2000H life span).
It’s applicable for large scale live concerts, TV productions, road shows, clubs, etc.



Quick Detail:



  • A 280W lamp included
  • 2000 hours rated lamp source
  •  Electronic ballast and power supply
  •  Smooth and precise resolution for PAN/TILT movement
  •  630° /540° /360° PAN and 270°/180° /90° TILT movement optional
  •  Scan position memory, auto reposition after unexpected movement
  •  2.5° Beam angle
  •  Improved optics and flat beam field
  •  No need for adjustment of reflector or lamp
  •  Anti-reflection 136mm front lenses
  •  1 Static gobo wheel with 16 gobos plus open
  •  1 Color wheel with 11 colors plus open
  • Variable direction rainbow effect with speed adjustable
  •  Motorized focus from near to far
  • 3Kinds of fantastic prism effects
  •  16-facet prism with 11 colors plus open
  •  6-facet+8-facet prism with variable speed and direction
  •  Combined prism effect by 16-facet prism and 6-facet+8-facet prism with variable
  • speed and direction
  • Frost filter available (Hybrid effect for wash)
  •  Dual flag mechanical dimming system
  •  20T/sec high speed LED shutter/strobe effect with variable speed
  •  Preset variable/random strobe and dimming pulse effect
  •  14/16 DMX channels USITT DMX-512 (15CH for vector mode)
  •  Vector mode with blackout MIB function
  •  DMX512, master-slave, and sound activated controllable or auto operation
  • (8 built-in programs)
  •  DMX recorder and edit function integrated
  • 2.4"TFT LCD display (320*240pix)
  •  Display reversible for up side down application
  •  Powercon IN/OUT
  • 3-Pin XLR connectors IN/OUT
  •  Fan cooling system
  •  Constant temperature readout and management function
  •  Lamp using time readable on the display
  •  -35-45°C max ambient temperature
  • IP20 protection rating
  • 55dB at 3’dB rating
  •  2*1/4 turn fastening Omega clamps
  •  1*Safety attachment point available
  •

DMX  Moving Head Mini Beam 10R Osram Lamp  Stage Lighting For Performance





DMX  Moving Head Mini Beam 10R Osram Lamp  Stage Lighting For Performance





Description:



  1. Input Voltage:AC90-260V 50/60Hz
  2. LED Quantities:1* OSRAM 280W lamp
  3. Control Signal:DMX512, master-slave and sound activated or auto operation
  4. Control Channel:13/15 DMX channels USITT DMX-512
  5. Power Consumption: 230W 270W 330W
  6. Dimensions:203(D)*348(W)*434(H)mm
  7. Packing Dimensions:490(D)*370(W)*375(H)mm
  8. Net Weight:13.2kg
  9. Gross Weight: 15.2kg



Applications:



Disco and Club

Live performance

Stage show





Competitive advantages:



good price, reliable quality, guarantee of delivery,good after service
