High Efficiency 50 Watt Mini Moving Head Spot With Red Background LED Display

50 Watt Mini Moving Head Spot With Red Background LED Display And White LED Lamp





Quick Detail



The MINISPOT 150 features a 7500K 150W LED with high intensity and efficiency.

It produces very high light output, through a specific 13.2° optic system.

The PAN/TILT integrates in fast and quiet movement.

Itoffers a full complement of professional characteristics, including a rotating gobo wheel, static gobo wheel, color wheel, a 3-facet prism,linear electronic focus, 0-100% linear LED dimmer, variable speed

shutter/strobe.













Features



 > A 50W white LED lamp, 7500K

 > 50000 hours life span and low power consumption

 > 8/16 bit smooth and precise resolution for PAN/TILT movement

 > 360°/540°/630° PAN and 90°/180°/270° TILT movement

 > Scan position memory, auto reposition after unexpected movement

 > Specific high precision glass optic system with 13.2° projection angle

 > Improved optics and flat beam field

 > 1 rotatable gobo wheel with 6 rotatable and interchangeable gobos plus open with speed adjustable,

     stream effect, dithering effect and rotatable clockwise or anticlockwise

 > Gobo size 21.8mm (external dimensions)/14.5mm (inner dimensions)

 > 1 Color wheel with 7 colors plus open

 > Variable direction rainbow effect with speed adjustable

 > 2.5m -15m electric focus

 > 3-facet prism with variable speed and direction

 > 0-100% linear LED dimmer

 > 25T/sec high speed LED shutter*strobe effect with variable speed

 > Preset variable/random strobe and dimming pulse effect

 > 11/13 DMX channels USITT DMX-512

 > DMX512, master-slave, and sound activated controllable or auto operation (7 built-in programs)

 > DMX recorder and edit function integrated

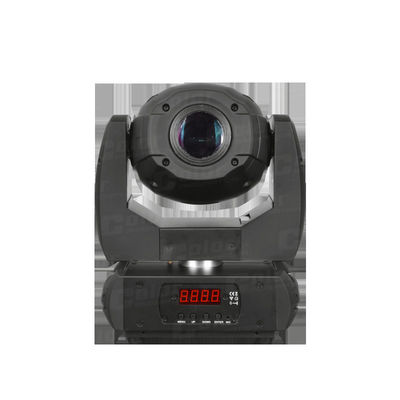

 > Red background LED display

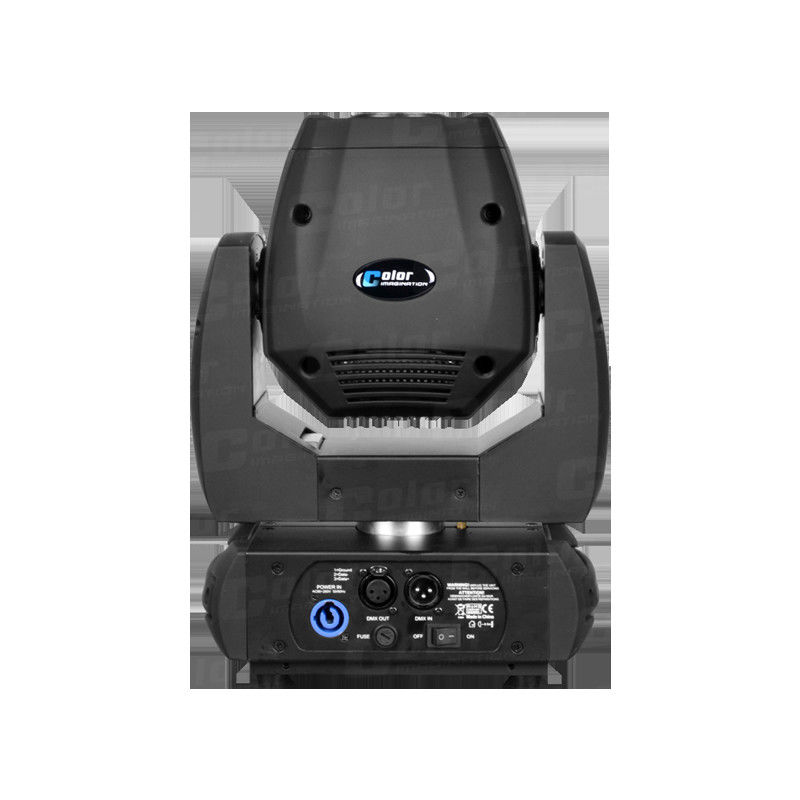

 > Powercon connector IN

 > 3-pin XLR connectors IN/OUT

 > Fan cooling system

 > Constant temperature readout and management function

 > -35°C~45°C max ambient temperature

 > IP20 protection rating

 > 55dB at 3’dB rating

 > 1*Hanging kit

 > 1*Safety attachment point











Specification



 >  Input Voltage:AC90-260V 50/60Hz

 >  LED Quantities:1*50W white LED

 >  Control Signal:DMX512,master-slave and sound activated or auto operation

 >  Control Channel: 11/13 DMX channels USITT DMX-512

 >  Power Consumption:125W

 >  Dimensions:149(D)*270(W)*366(H)mm

 >  Packing Dimensions:350(D)*450(W)*240(H)mm

 >  Net Weight: 6.6kg

 >  Gross Weight: 7.6kg









Applications



Disco and Club, Band performance, Stage show, Road show, Live concerts
